BOYA BY-XM6 S1 / BY-XM6 S2 / BY-XM6 K1 / BY-XM6 K2 - Compact 2.4GHz wireless recording mic

MAIN INFORMATION ABOUT BOYA BY-XM6 SERIES:

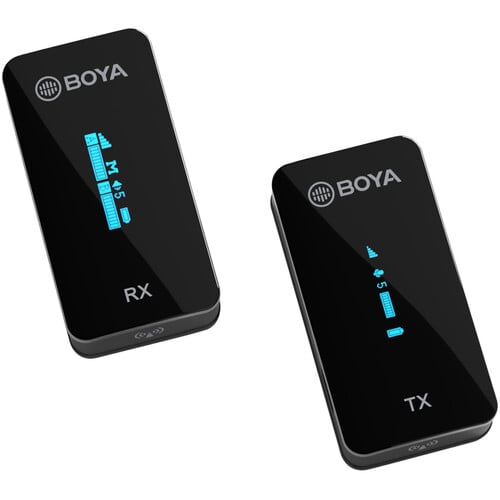

👉 BOYA BY-XM6-S1 includes: 1 transmitter (TX) and 1 receiver (RX)
👉 BOYA BY-XM6-S2 includes: 2 transmitters (TX) and 1 receiver (RX)
---------

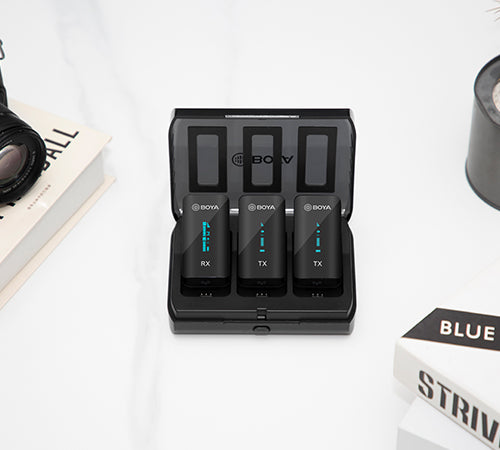

👉 BOYA BY-XM6-K1 includes: 1 transmitter (TX) + 1 receiver (RX) and integrated charging case
👉 BOYA BY-XM6-K2 includes: 2 transmitters (TX) + 1 receiver (RX) and an integrated charging case
---------
👉 BOYA BY-XM6-K1BOX : Charging box for BY-XM6-S1
👉 BOYA BY-XM6-K2BOX : Charging box for BY-XM6-S2

FEATURES:
◾ BOYA BY-XM6 Series is an ultra-compact 2.4Ghz wireless microphone system.
◾ Adopts Adaptive Frequency Enhanced (AFH) wireless signal transmission technology, which can make BY-XM6 S1/S2 automatically avoid interference hopping frequency parts to realize stable signal transmission within a range of up to 100m (328ft -without obstacles).
◾ With high-quality signal processing circuit and capsule with signal-to-noise above 84dB and distortion ratio less than 0.1%, BY-XM6 Series captures and delivers high-quality, clear and low-noise sound.
◾ With vivid and easy-to-read OLED displays on the transmitter and receiver, users can adjust signal transmission precisely.
◾ And the transmitter is also designed with a built-in omnidirectional microphone, so users can clip the transmitter on their collar to capture sound, and they can also plug the lavalier microphone into the MIC IN jack of the transmitter to capture sound.
◾ Additionally, this microphone set is equipped with both a 3.5mm TRS-TRS audio cable and a 3.5mm TRS-TRRS audio cable.
◾ So it can work well with DSLR or mirrorless cameras, smartphones etc.
◾ BY-XM6 K1/K2 is an upgrade of BY-XM6-S1/S2 because XM6-K1/K2 will be equipped with a portable, compact but powerful charging box, allowing you to easily carry it outdoors.

FEATURES:

• Ideal for one-person vlogging, YouTube videos, live streaming,
• Compatible with DSLRs, mirrorless cameras, 3.5mm port smartphones
• 2.4GHz wireless signal transmission technology
• Hi-Fi audio processing and distribution system, low noise.
• Designed with an easy-to-use, vivid and informative OLED screen.
• Integrated omnidirectional microphone and lavalier microphone
• Headphone output jack on receiver for real-time monitoring.
• Stereo and mono outputs are available and switchable
• Built-in Li-ion battery provides 7 hours of use on the transmitter
• Operating range up to 100m (328ft - no obstacles)

TECHNICAL SPECIFICATIONS:
TX TRANSMITTER:

• Transmission type: 2.4GHz digital frequency
• Operating range (no obstacles): Up to 328ft (100m)
• RF output power:＜ 10mW
• Polar pattern: Omnidirectional
• Frequency response: 50Hz-18KHz
• Maximum SPL: Built-in microphone: 120dB SPL ;Lavalier microphone: 110dB SPL
• Sensitivity: Built-in microphone: -39dB ;Lavalier microphone: -39dB
• SNR: >84dB
• Power Requirements: Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
• Working time: About 7 hours
• Antenna: PIFA antenna
•  Audio Input: MIC/LINE IN 3.5mm TRS Jack or Built-in Microphone

RX RECEIVER:

• Transmission type: 2.4GHz digital frequency
• Operating range (no obstacles): Up to 328ft (100m)
• Audio output connector: 3.5 mm headphone jack;3.5mm TRS output jack
• Audio output level: –60 dBV to -20dBV
• Power Requirements: Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
• Built-in battery life: About 6.5 hours
• Antenna: PIFA antenna

Specifications:

• Operating range (no obstacles) Up to 328ft (100m)
• Omnidirectional polar pattern
• Power Requirements Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
• Built-in battery life About 6 -7 hours
• Audio Input 3.5mm TRS MIC/LINE IN Jack or Built-in Microphone
• Weight ~ 32g (1.13oz)
• Dimensions 62.1 × 31.6 × 16.5mm
