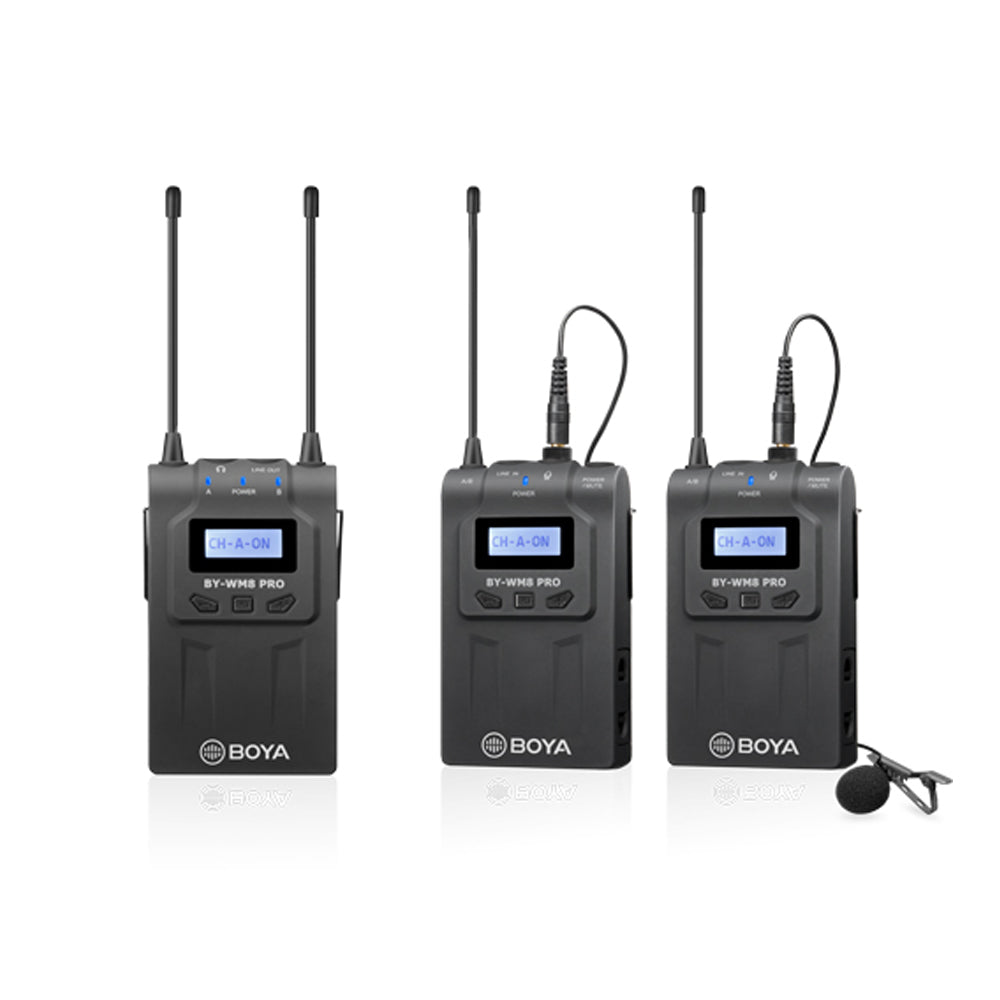

Boya BY-WM8 Pro K2 - Wireless Recording Microphone

Boya recording microphone BY-WM8is designed for specialized cameras and camcorders.The product uses 48 UHF channels in its own frequency band, ensuring anti-interference and signal stability.Users can use the Boya BY-WM8 microphone for 6 hours continuously with 2 durable AA (Rechargeable) batteries.

BY-WM8 Pro-K2 Wireless Recording Microphone (FB102):
– Operating frequency: 60Hz-15KHz±3dB
– Signal/Noise: 74dB SPL
– Audio input connection:3.5mm mini jack
– Operating range: 100M
– Power requirement: 3.0V DC
– Power consumption: 3.3V/110 mA
– Receiver: 3.3V/100 mA
– Battery life: ~ 8 hours

** Convenient connection
This Boya Microphoneuses sturdy synthetic plastic material, durable for long-term use over time.time.The product integrates a convenient jack, allowing users to connect to many different devices quickly and stably.

** Design orientation for DSLR cameras
BOYA BY-WM8 recording microphone is a dual wireless microphone system using UHF frequency, designed for ENG, EFP,DSLR video, and dual-Channel can work with two transmitters, perfect for interviews

Using 48 UHF channels, with separate frequency bands, no overlapping waves, completely eliminating signal interference, with up to 6 hours of continuous live transmission time with only 2 AA batteries (Rechargeable), Boya BY-WM8 is a wireless microphone product for cameras and specialized camcorders.

** Receiver
• Antenna: flexible type
• Audio input: 3.5mm mini plug
• FSignal-to-noise: 80 dB
• Distortion: 0.8%(-60 dBV, 1 KHz input)
• Headphone output power level: 60 mW, 32 Ohms / 1KHz
• Audio output level: 120 mV
• Power source: Two AA Rechargeable batteries
• Operating time: ~ 7 hours

** Transmitter – Transmitter
• Output powerRF: 20 mW
• Antenna: flexible type
• Spurious emission: 250 nW or less
• Frequency response: 60Hz-15 KHz +/- 3 dB
• Audio input: 3.5mm mini plug
• Audio input level: 600 mV-2000 mV
• Reference deviation: ± 7KHz (-60dBV, 1 KHz input)
• Input frequency range: 20 Hz-20 KHz
• Power source: Two AA Rechargeable batteries
• Operating time: ~7 hours
